Rotork Actuators

Rotork is the market leading actuator manufacturer and flow control company that operates in any market where the flow of gases or liquids needs to be controlled. It has established manufacturing facilities, a global network of local offices and agents who can truly provide a worldwide service.

For sixty years, engineers have relied upon Rotork for innovative, dependable solutions to manage the flow of liquids, gases and powders. Rotork products and services are helping companies in the oil & gas, water and waste water, power, marine, mining, food, pharmaceutical and chemical industries around the world to improve efficiency, assure safety and protect the environment.

Rotork Actuators

GT Range ActuatorGT Range

  • Single- and double-acting pneumatic piston actuators
  • Rack and pinion principle
  • Standard 90°, optional 120°, 180° , 240° or custom angles
  • -5° to +5° from 90° position
  • Single and double end stop options
  • 2.4 to 15,300 Nm (135,400 lbf.in)
  • 2 to 10 bar

Downloads
Spec sheet:
gt-range-specsheet
Manual:
gt-range-manual

RC200 Remote Control RangeRemote Control Range

  • RC200
  • Compact design
  • Standard temperature range -20°C to +80°C
  • Scotch yoke principle gives high torque in the end positions

Downloads
Spec sheets:
rc200-range-specsheet

K-Tork Range RotorkK-Tork Range

  • Compact, space saving design
  • Linear and constant torque output
  • Complete range of pneumatic, analogue and digital controls
  • No high-voltage power or MCCs required

Downloads
Spec sheet:
k-tork-range-specsheet

CP Range ActuatorsCP Range

  • Pneumatic actuators in double-acting and spring-return configurations
  • Corrosion resistant cylinders
  • Torque output to 4,500 Nm (39,800 lbf.in)

Downloads
Spec sheet:
cp-range-specsheet
Manual:
cp-range-manual

LP LH ActuatorsLP/H Range

  • Pneumatic and hydraulic linear actuator

Downloads
Spec sheet:
linear-lp-lh-actuators-specsheet

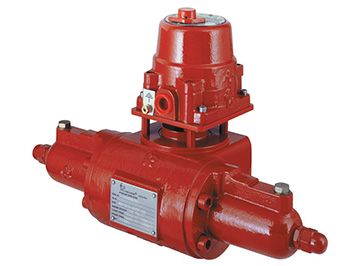

RH Range ActuatorsRH Range

  • Hydraulic rack & pinion valve actuator
  • Heavy-duty cast iron bodies
  • Electroless nickel-plated cylinders for corrosion resistance
  • Nickel-plated, anti-blowout pinion
  • Compatible with SVM partial stroke testing

Downloads
Spec sheet:
rh-range-specsheet

RHQ Range

  • Double acting hydraulic actuator
  • Ductile cast-iron or carbon-steel totally enclosed weatherproof housings
  • Lower swept volume than vane type actuators
  • Electroless nickel-plated cylinders with redundant piston seals
  • Standard rotation 90° (+/- 5°)

Downloads
Spec sheet:
rhq-range-specsheet

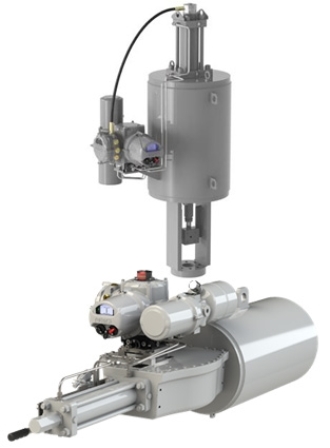

Skilmatic Range ActuatorsSkilmatic Range/H

  • Electrical powered, 1-phase, 3-phase or 24 VDC
  • Failsafe to close, open or lock in last position
  • Spring-return or double-acting
  • Adjustable operating speeds with stepping facility and optional internal flow control valves
  • Configurable status and alarm outputs

Downloads
Spec sheet:
skilmatic-range-specsheet
Manual:
skilmatic-range-installation-manual

IQ Multi-turn Rotork IQ3 Range

  • Simple, secure commissioning and configuration
  • Safe, motor-independent handwheel operation available at all times
  • Explosionproof and certified for safety applications (SIL2/3)
  • Real-time valve and actuator perfomance information viewable on-screen

IQT Part-turn Rotork

Downloads
Spec sheet:
iq3-range-specifications

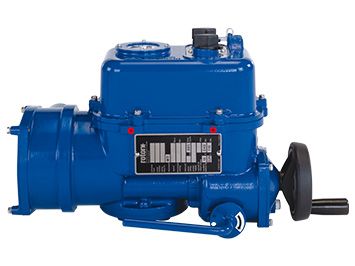

Rotork Q RangeQ Range

  • Reliability of single-phase squirrel cage motors
  • Simple remote control for basic applications
  • Positive travel limitation by externally adjustable mechanical stops
  • Simple action auxiliary switch setting
  • Self locking electrical and manual drive

Downloads
Spec sheet:
q-range-specifications
Manual:
q-range-installation-manual
